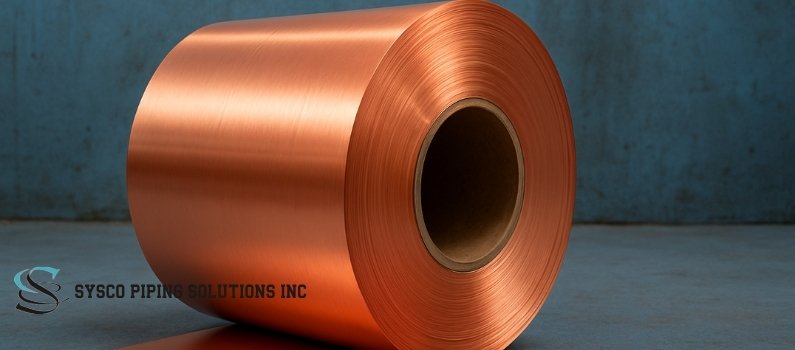

Sysco Shims is a prominent Copper Foil Manufacturer in India, which manufactures Copper Cold Rolled Foil and Copper 2D Finish Foil with Cold and Hot Roll Process. We have
Copper HR Foil Exporter, Copper Foil Stockist, Cold Rolled Copper Nickel Foil, Copper Foil Supplier, Copper 2D Finish Foil Supplier, Flat Copper Foil Distributor, Cu Foil Sizes in mm, Copper 2B Finish Foil Supplier in India
Sysco Shims is an established Copper Foil Supplier in India, which provides Flat Copper Foil and Cu 2B Finish Foil of precision-engineered copper foils that have been developed under ISO and global standards. We supply customisation in terms of size and length, like 0.05mm thin foils or 1500mm wide strips, to suit the various industrial requirements. Strict Chemical & Mechanical Testings on our Cu 2D Finish Foil, tensile, composition and others are done, which is covered with durability and predictable action in any application. We are also a major Steel Strip Manufacturer in India.
Specification of Copper 2D Finish Foil
| Copper Foil | SPECIFICATIONS |
| Size | ID 300 mm. minimum OD 1,000 mm (maximum length option upon agreement) |
| Thickness | 0.1 mm |
| Minimum Width | Up to 360 mm |
| Weight | Weight per feet in kg |
| Standard & Material | JIS, BS EN, DIN, ASTM and IS |
Material Available in Copper Foil
Chemical Properties of Copper Perforated Foil
| Copper (Cu%) | 99.90 Min | 99.90 Min | 99.50 Min |
| Tin (Sn%) | - | - | 0.07 - 0.20 |
| Phosphourous (P%) | - | 0.015 - 0.040 | 0.015 - 0.045 |
| Other impurities (%) | - | - | - |
Copper Hot Rolled Foil Mechanical Properties
| Alloy Name | Trade Name | Temper | Hardness HV | Tensile Strength N/mm2 (Min) | Elongation% min |
| Cu-ETP Copper/Tape | Electrolytic Tough Pitch Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-DHP | Deoxidized, High Residual Phosphorus Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-TBC | Tin Bearing Copper | Annealed (O) | 60 Max | - | - |
| Quarter Hard(HA) | 60-80 | - | - | ||
| Half Hard (HB) | 80-100 | - | - | ||
| Hard (H) | 105-125 | - | - | ||
| Extra Hard (HE) | 125 - 145 | - | - |
Flat Copper Foil Dimensions
| Alloy | For Strips And Foils | For Sheets | |||||
| Thickness Range (Min - Max) mm |
Width Range (Min - Max) mm |
Foil ID (Min - Max) mm |
Foil Density (Max coil weight) |
Thickness Range (Min - Max) mm |
Width Range (Min - Max) mm |
Length (Max) mm |
|
| Copper (XLPE, ETP, DHP, TBC) | 0.030 - 0.3 | 10 - 350 | 100 - 300 | 2 - 3 | - | - | - |
| 0.031 - 0.80 | 10 - 450 | 100 - 300 | 2 - 3 | 0.30 - 1 | 450 Max | 1500 | |
| 0.81 - 3.00 | 20 - 400 | 300 - 500 | 2 - 3 | 1 - 3.00 | 450 Max | 4000 | |
Applications of Copper 2D Finish Foil
Sysco Shims is one of the largest Copper Foil Manufacturers, Supplier and Exporter in India
Sysco Shims
Testing of Copper Foil
All the products go through a quality check before they are shipped to the customers.
Packing of AISI Copper Foil
We apply the safest and most efficient means of packaging for every kind of delivery.
Copper Perforated Foil Suppliers in India
Our Product reliability and performance have made Sysco Shims the most reliable supplier and distributor of Copper Foil throughout Mumbai and all Industrial areas and cities including Mumbai MIDC, Gujarat GIDC, Kolkata, Pune and other cities in India. We continue to hold a dominant position for Best Copper Foil Manufacturer in India.
| Copper Foil Supplier in Indian Cities | ||||
| Mumbai | Surat | Navi Mumbai | Pune | Gandhinagar |
| Chennai | Belgaum | Vijayawada | Hyderabad | Thrissur |
| Indore | Ranchi | Bangalore | Nashik | Chandigarh |
| Nagpur | Kolkata | Tiruchirappalli | Aurangabad | Kanpur |
Copper Hot Rolled Foil Exporter in India
Sysco Shims is a Exporter and Supplier of Copper Foil in India offering hot rolled and cold rolled Copper Foil, We set our distribution network with more than 11 countries globally like the Saudi Arabia (KSA), Qatar, Germany, Oman, Indonesia, South Africa, Vietnam, UK, United Arab Emirates (UAE), Philippines, Kuwait.
