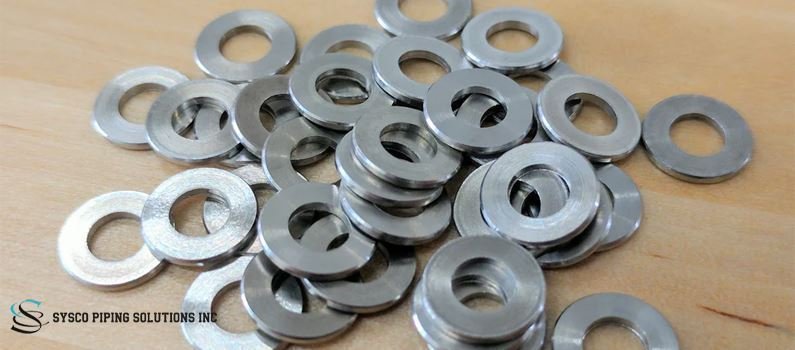

Sysco Shims is one of the reputable Shim Washers Manufacturers in India. These Shim Washers are used with an accurate dimension and installed below the head of a screw to flatten the surface. They manage and get rid of undesired spaces inside the device. Shim Washers come in various thicknesses and can be easily adjusted often in millimeters or micrometers. These M12 Shim Washers can also be ordered in precise sizes and thicknesses, and they can be made of any material depending on the need of the application. Precision Shim Washers can withstand corrosive environments, chemicals, and mechanical stresses equally depending on the materials used which makes the functionality of M5 Shim Washer for an extended period. Whether you require non-standard sizes or special sizes of Shim Washers you can mail us at export@syscoshims.com.
Steel Shim Washers Manufacturer, Brass Shim Washers Supplier, Precision Shim Washer, Shim Washer Manufacturers in India
Sysco Shims is a leading company for custom Shim washers manufacturing that can be delivered to different industries where accuracy and performance are important. Being a leading supplier of shim washers, Sysco Shims has years of experience in the steel industry, we provide you with the finest Steel Shim Washers with the greatest possible precision and stability. Shim Ring Washer protect mechanical systems from wear and tear by distributing loads across larger areas, thus increasing their lifespan. Correct positioning and thickness offered by us, Shim washers enhances performance and lowers energy usage by reducing the number of operational interruptions. We are also certified Stainless Steel Coil Manufacturers in India.
Specification of Shim Washers
| Item | Shim Washers |
| Material Hardness | Shim Washers = 170-225 HV Support Washers = 44-49 HRC |
| Tolerances | 0.03 to 0.05mm |
| Thicknesses | 0.1mm |
| Materials available | Stainless Steel, Aluminum, Brass, Beryllium Copper, Copper |
| Compliance Standards | DIN988 |
| Metric | Dia M3 - M150 |
Material in Shim Washers
Types of Metal Shim Washers
| Nominal Size | Washer Diameter | Washer Thickness | ||||
| Internal (Max – Min) | External (Max – Min) | Thickness (Max – Min) | Thinness (Max – Min) | |||
| M3 | 3.4 – 3.2 | 7.0 – 6.7 | 0.6 – 0.4 | – | ||
| M4 | 4.5 – 4.1 | 9.0 – 8.0 | 0.9 – 0.7 | – | ||
| M5 | 5.5 – 5.1 | 10.0 – 9.7 | 1.1 – 0.9 | – | ||
| M6 | 6.7 – 6.1 | 12.5 – 12.0 | 1.8 – 1.3 | 0.9 – 0.7 | ||
| M8 | 8.7 – 8.4 | 17.0 – 16.0 | 1.8 – 1.4 | 1.1 – 0.9 | ||
| M10 | 10.9 – 10.5 | 21.0 – 20.0 | 2.2 – 1.8 | 1.45 – 1.05 | ||
| M12 | 13.4 – 12.5 | 24.0 – 23.5 | 2.7 – 2.3 | 1.8 – 1.4 | ||
| M16 | 17.4 – 16.5 | 30.0 – 29.5 | 3.3 – 2.7 | 2.2 – 1.8 | ||
| M20 | 21.5 – 21.0 | 37.0 – 36.0 | 3.3 – 2.7 | 2.2 – 1.8 | ||
| M24 | 25.5 – 25.0 | 44.0 – 43.2 | 4.3 – 3.7 | 2.7 – 2.3 | ||
| M30 | 31.6 – 31.0 | 56.0 – 55.0 | 4.3 – 3.7 | 2.7 – 2.3 | ||
| M36 | 37.6 – 37.0 | 66.0 – 65.0 | 5.6 – 4.4 | 3.3 – 2.7 | ||
Applications of Shim Washers
Sysco Shims is one of the Best Shim Washers manufacturer in India
Sysco Shims
Testing of Shim Washers
All the products go through a quality check before they are shipped to the customers.
Packing of Shim Washers
We apply the safest and most efficient means of packaging for every kind of delivery.
Metal Shim Washers Supplier in India
Sysco Shims is the approved Supplier and Manufacturers of Imperial Shim Washers. With a significant presence in Mumbai and other cities, we continue to hold a dominant position for best Shim Washers manufacturers in India.
| Shim Washer Supplier in Indian Cities | ||||
| Mumbai | Surat | Navi Mumbai | Pune | Gandhinagar |
| Chennai | Belgaum | Vijayawada | Hyderabad | Thrissur |
| Indore | Ranchi | Bangalore | Nashik | Chandigarh |
| Nagpur | Kolkata | Tiruchirappalli | Aurangabad | Kanpur |
Steel Shim Washers Exporter in India
We at Sysco Shims are an Exporters & Supplier of Shim Washers in India, supplying Brass Shim Washers, Laminated Brass Shim Washers, Aluminium Shim Washers, and Stainless Steel Shim Washers. We spread our network over 11 more countries like UK, Qatar, Oman, South Africa, Indonesia, Kuwait, Vietnam, Philippines, UAE, Saudi Arabia KSA, Germany.
